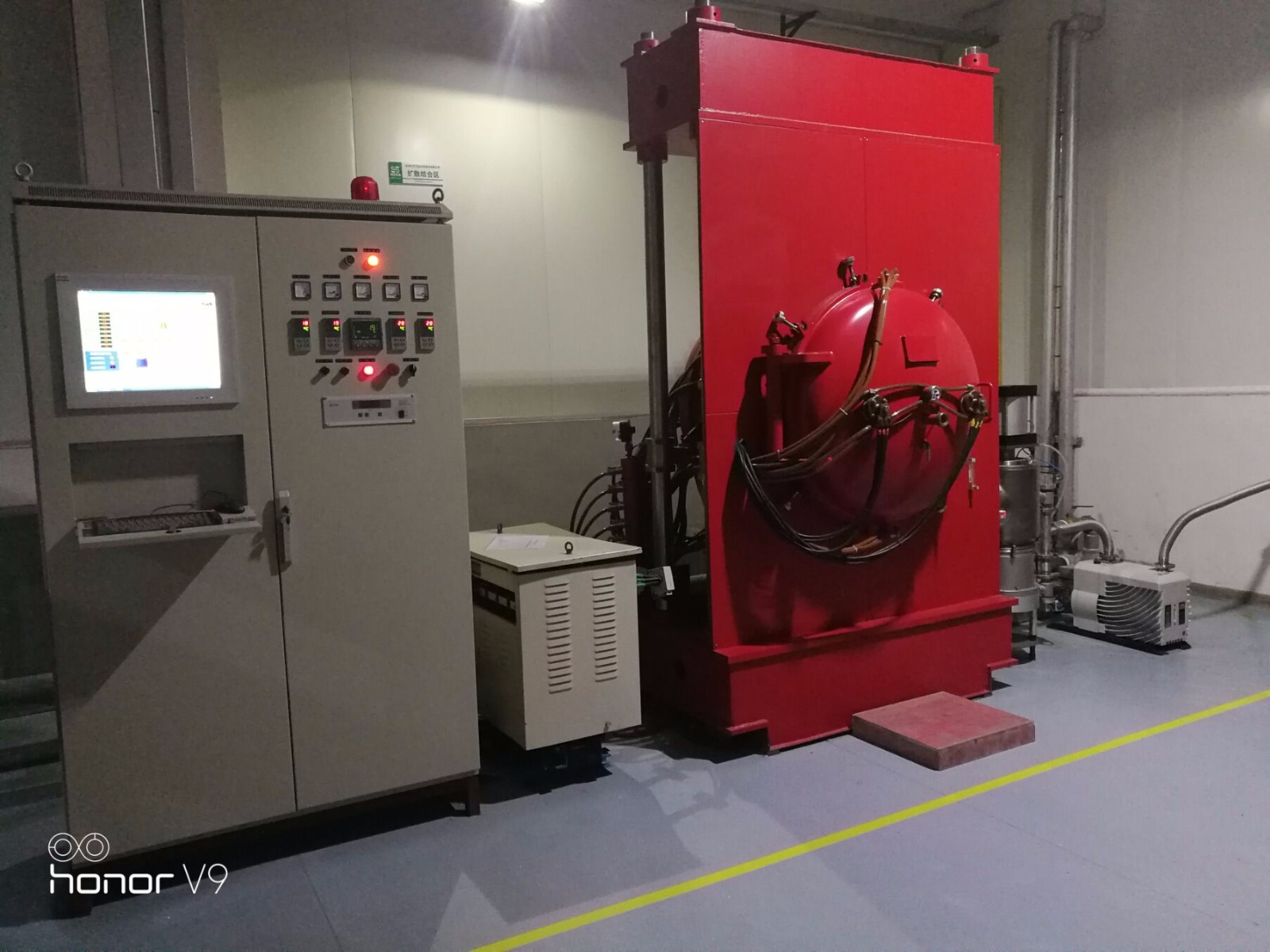

Horizontal-type vacuum diffusion welding furnace
Application:
The furnace mainly used for the vacuum diffusion welding of metals and ceramics,
also for the hot press shaping of metallic materials and the hot press sintering of the transparent
inorganic materials.
Features:
Adopting the molybdenum belt as the heating elements. Periodic operation. Servo pressing system
owning the better pressing accuracy.
1.Horizontal structure, stainless steel furnace shells; side door suitable for loading and unloading.
2.Vacuum system made up of the mechanical pump and diffusion pump, owning the higher vacuum.
3.Using the metallic heating radiation, thermal insulation is good.
4.Controlling mode of PLC plus touching screen, automatic operation.
Main technical parameters:
Model:ZM-36-16Y
1.Power: 36Kw
2.Max. temperature:1600℃
3.Final vacuum: 5X10-3Pa
4.Working zone: ?160X160mm
5.Max. Pressure:10T
6.Diameter of punch:85mm
7.Displacement of punch:100mm
The furnace can be customized according to your requirements.
